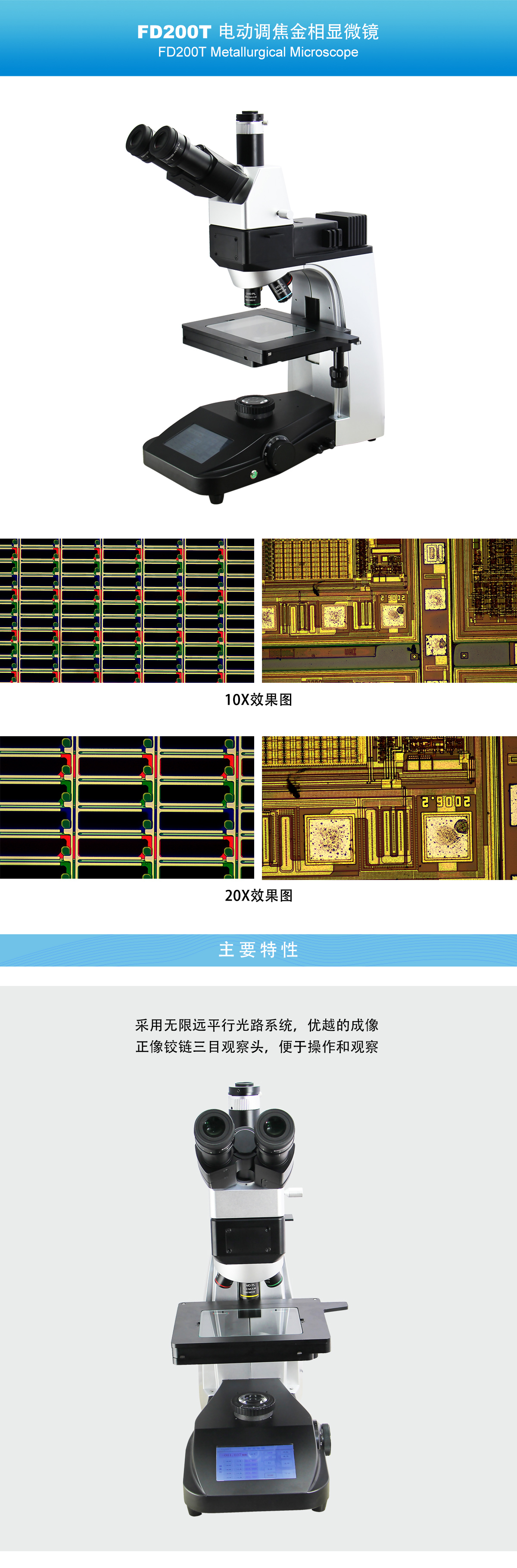

FD200T金相显微镜
-
-
:
-
:
-
:
-
:
-

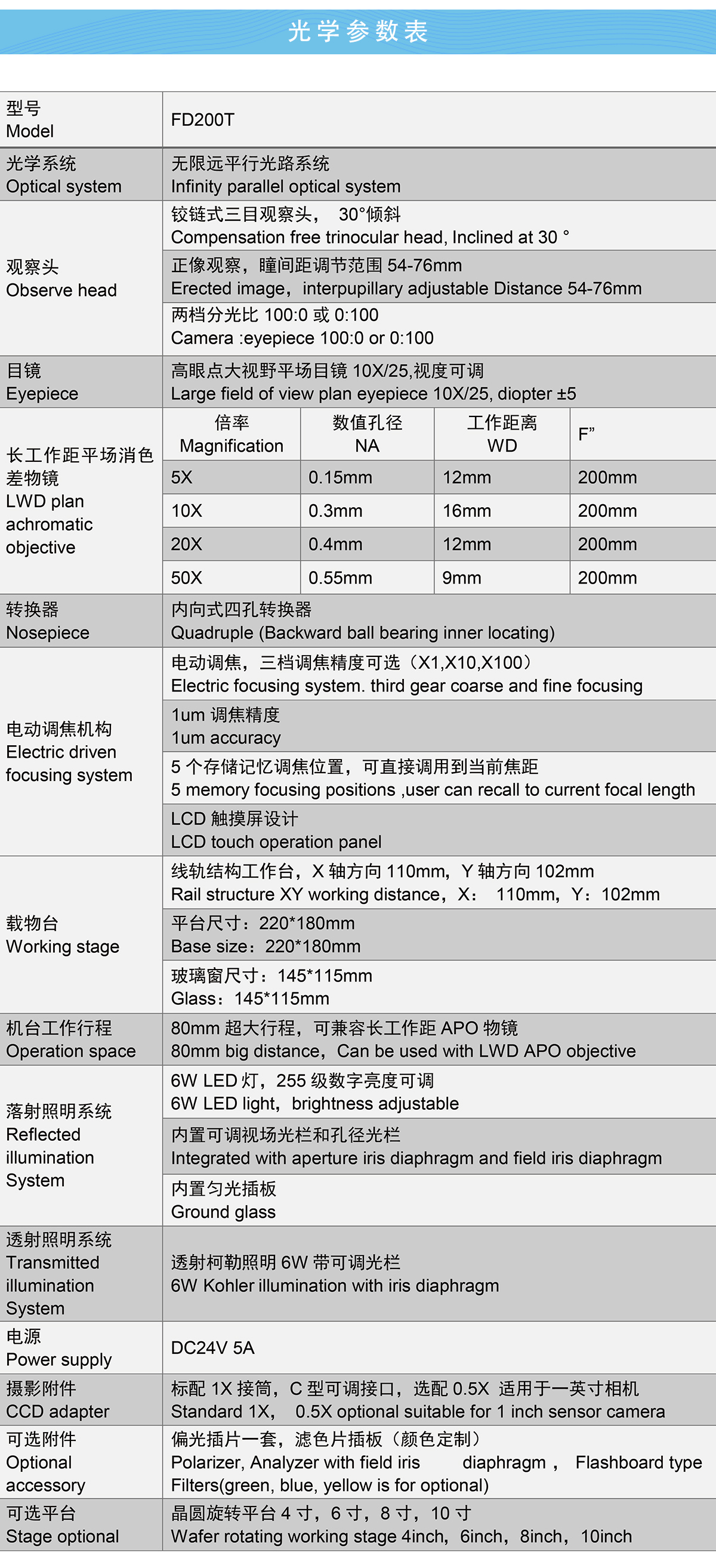

型号 Model |
FD200T |
|||
光学系统 Optical system |
无限远平行光路系统 Infinity parallel optical system |
|||
观察头 Observe head |
铰链式三目观察头, 30°倾斜 Compensation free trinocular head, Inclined at 30 ° |
|||
正像观察,瞳间距调节范围54-76mm Erected image,interpupillary adjustable Distance 54-76mm |
||||
两档分光比100:0或0:100 Camera :eyepiece 100:0 or 0:100
|
||||
目镜 Eyepiece |

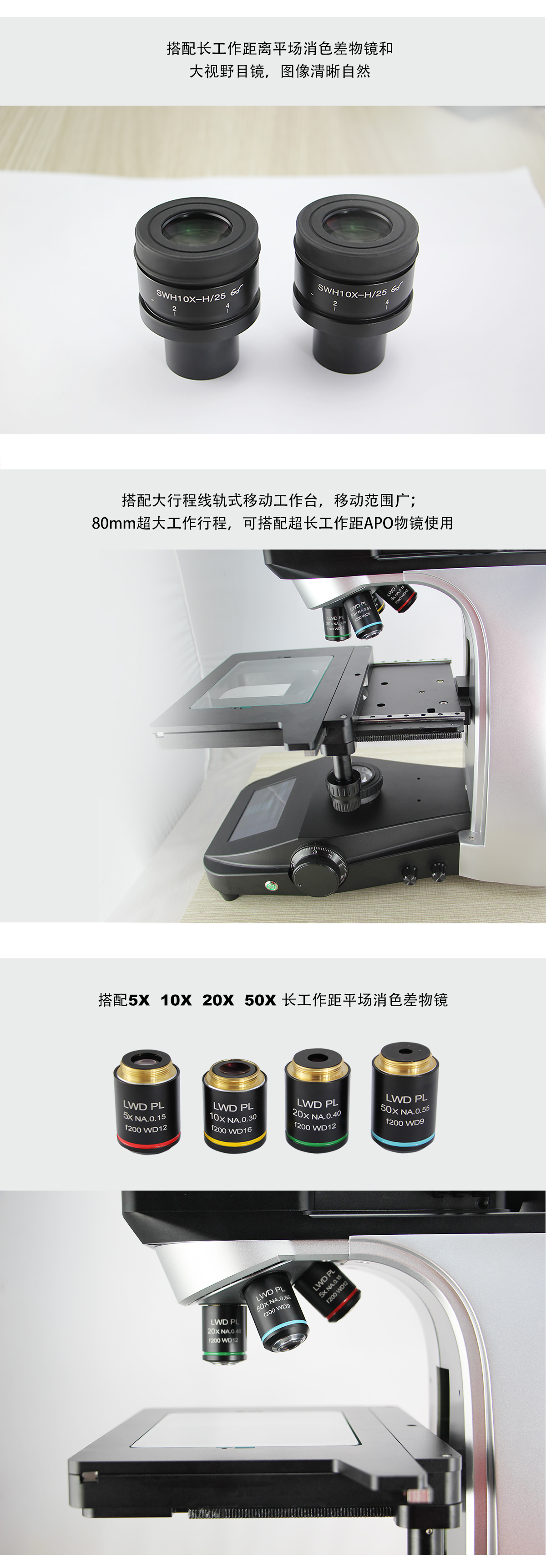

高眼点大视野平场目镜10X/25,视度可调 Large field of view plan eyepiece 10X/25, diopter ±5 |
|||
长工作距平场消色差物镜 LWD plan achromatic objective |
倍率 Magnification |
数值孔径 NA |
工作距离 WD |
F” |
5X |
0.15mm |
12mm |
200mm |
|
10X |
0.3mm |
16mm |
200mm |
|
20X |
0.4mm |
12mm |
200mm |
|
50X |
0.55mm |
9mm |
200mm |
|
转换器 Nosepiece |
内向式四孔转换器 Quadruple (Backward ball bearing inner locating) |
|||

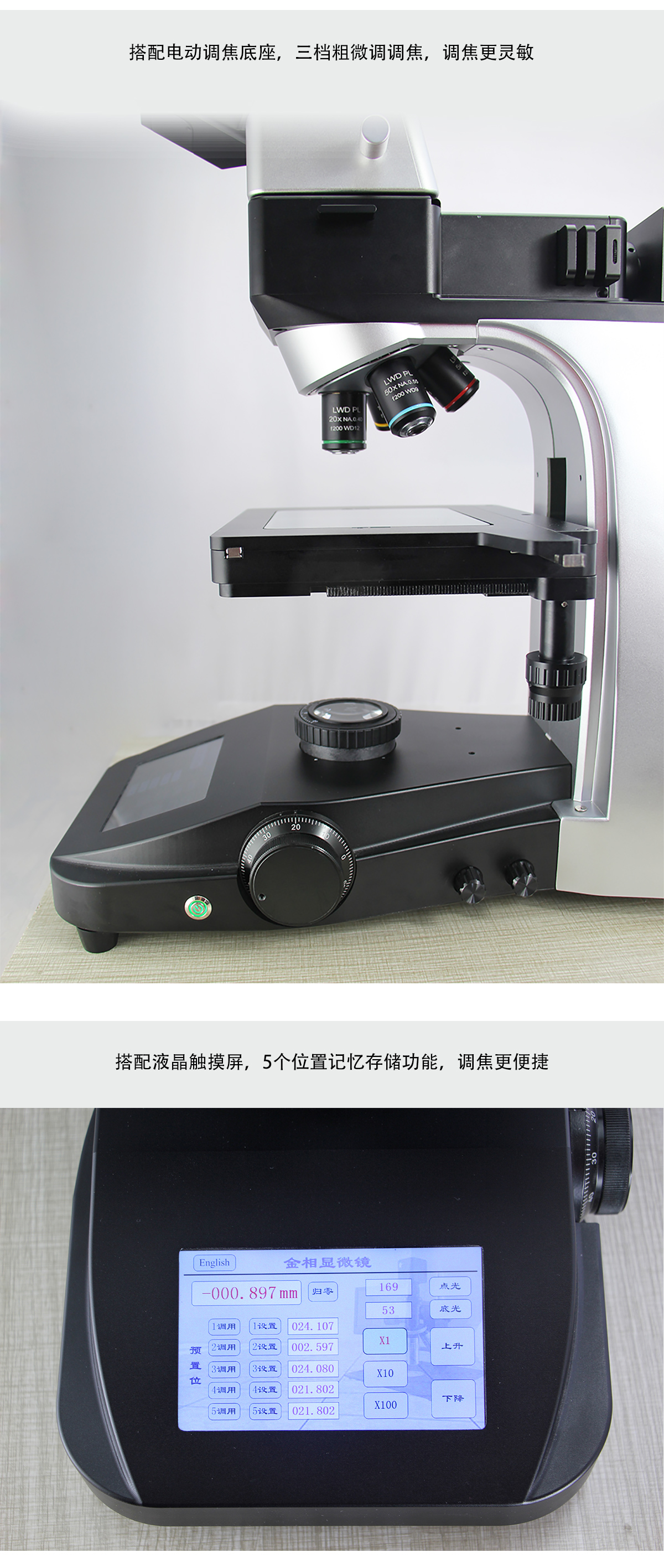

电动调焦机构 Electric driven focusing system |
电动调焦,三档调焦精度可选(X1,X10,X100) Electric focusing system. third gear coarse and fine focusing |
|||
1um调焦精度 1um accuracy |
||||
5个存储记忆调焦位置,可直接调用到当前焦距 5 memory focusing positions ,use can recall to current focal length |
||||
LCD触摸屏设计 LCD touch operation panel |
||||
载物台 Working stage |
线轨结构工作台,X轴方向110mm,Y轴方向102mm Rail structure XY working distance,X: 110mm,Y:102mm |
|||
平台尺寸:220*180mm Base size:220*180mm |
||||
玻璃窗尺寸:145*115mm Glass:145*115mm |
||||
机台工作行程 Operation space |
80mm超大行程,可兼容长工作距APO物镜 80mm big distance,Can be used with LWD APO objective |
|||

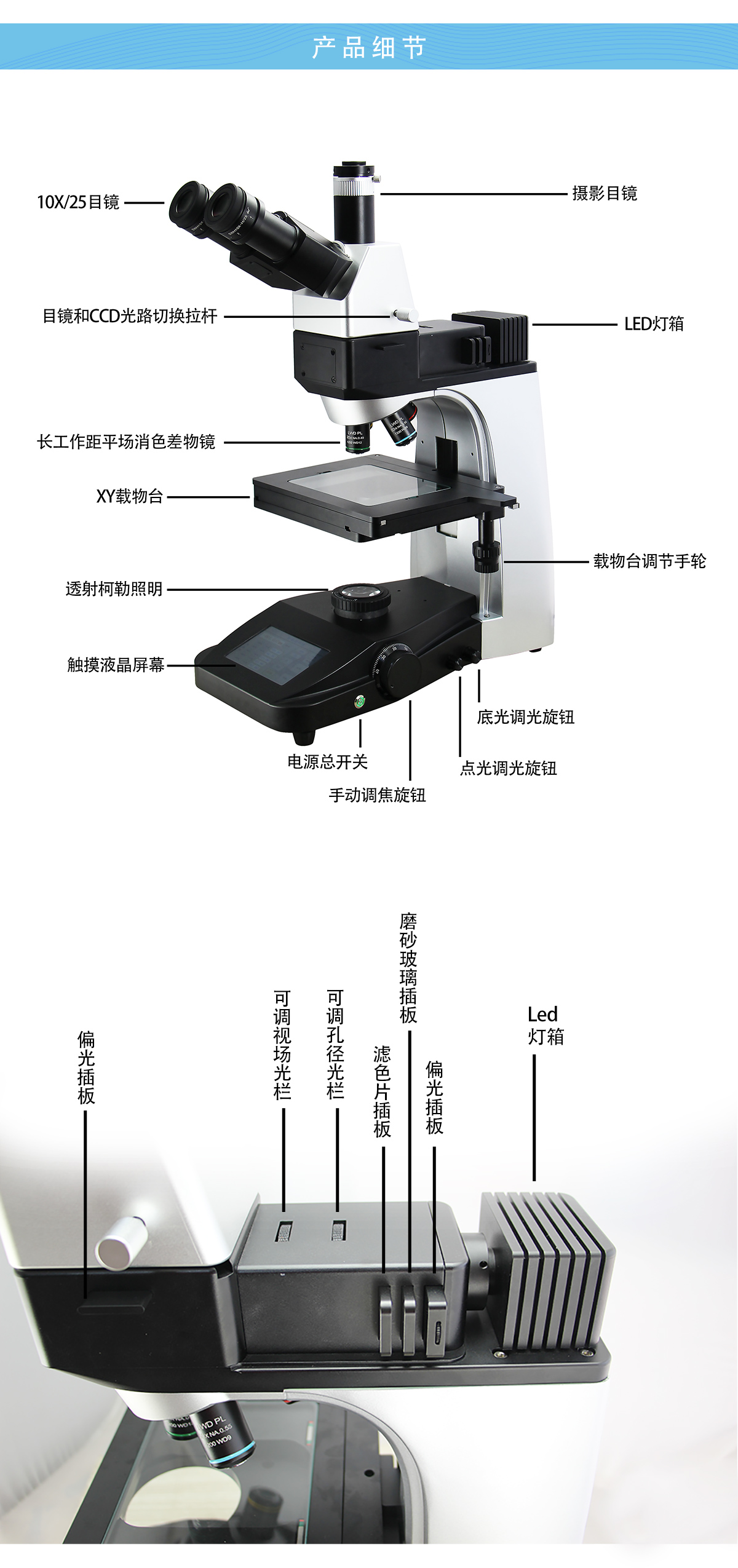

落射照明系统 Reflected illumination System |
6W LED灯,255级数字亮度可调 6W LED light,brightness adjustable |
|||
内置可调视场光栏和孔径光栏 Integrated with aperture iris diaphragm and field iris diaphragm |
||||
内置匀光插板 Ground glass |
||||
透射照明系统 Transmitted illumination System |
透射柯勒照明6W带可调光栏 6W Kohler illumination with iris diaphragm |
|||
电源 Power supply |
DC24V 5A |
|||
摄影附件 CCD adapter |
标配1X接筒,C型可调接口,选配0.5X 适用于一英寸相机 Standard 1X, 0.5X optional suitable for 1 inch sensor camera |
|||
可选附件 Optional accessory |
偏光插片一套,滤色片插板(颜色定制) Polarizer, Analyzer with field iris diaphragm,Flashboard type Filters(green, blue, yellow is for optional) |
|||
可选平台 Stage optional |
晶圆旋转平台4寸,6寸,8寸,10寸 Wafer rotating working stage 4inch,6inch,8inch,10inch |
